Type: S-1218

Application

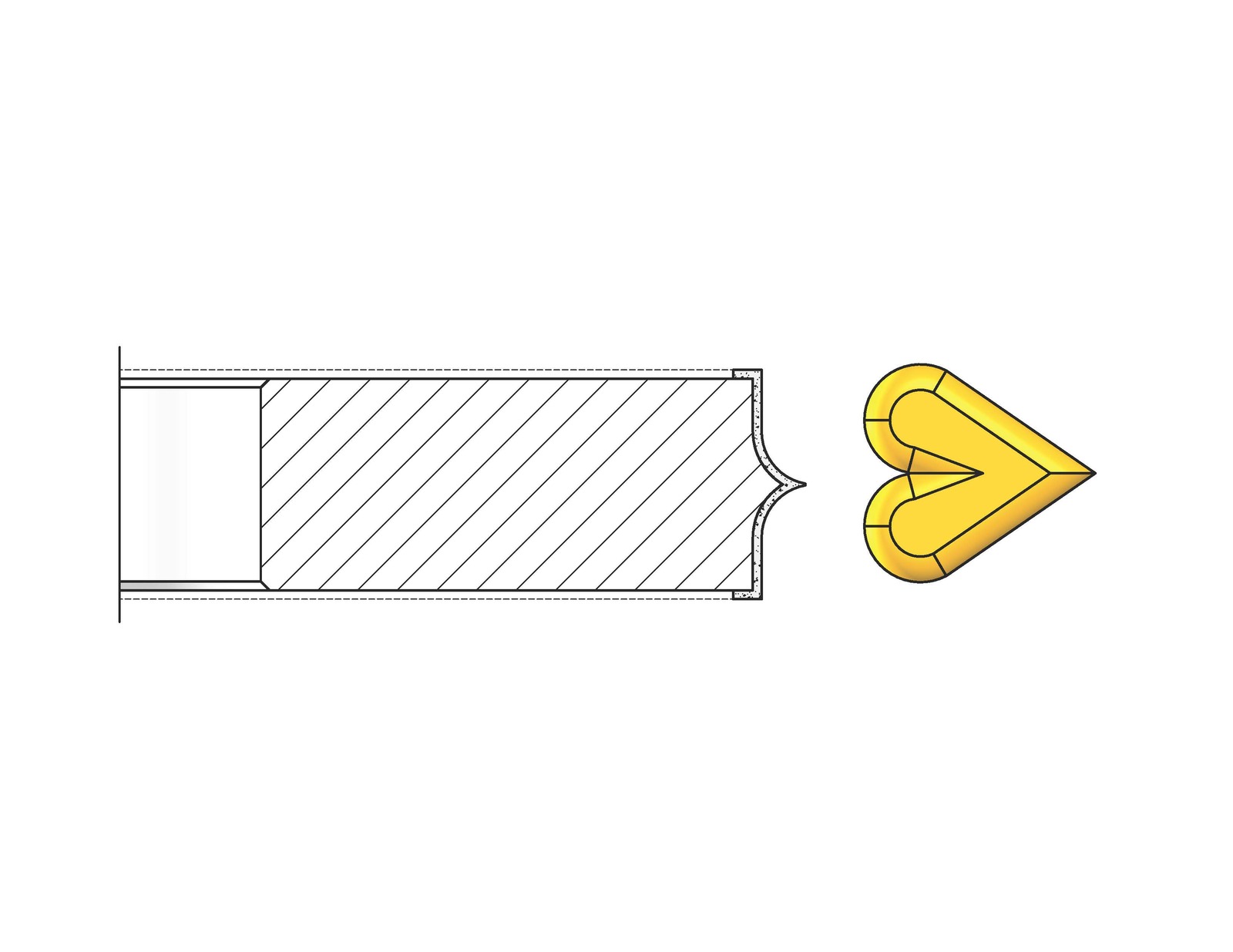

The galvanic diamond grinding wheel type S-1218 is designed for shaping a heart profile.

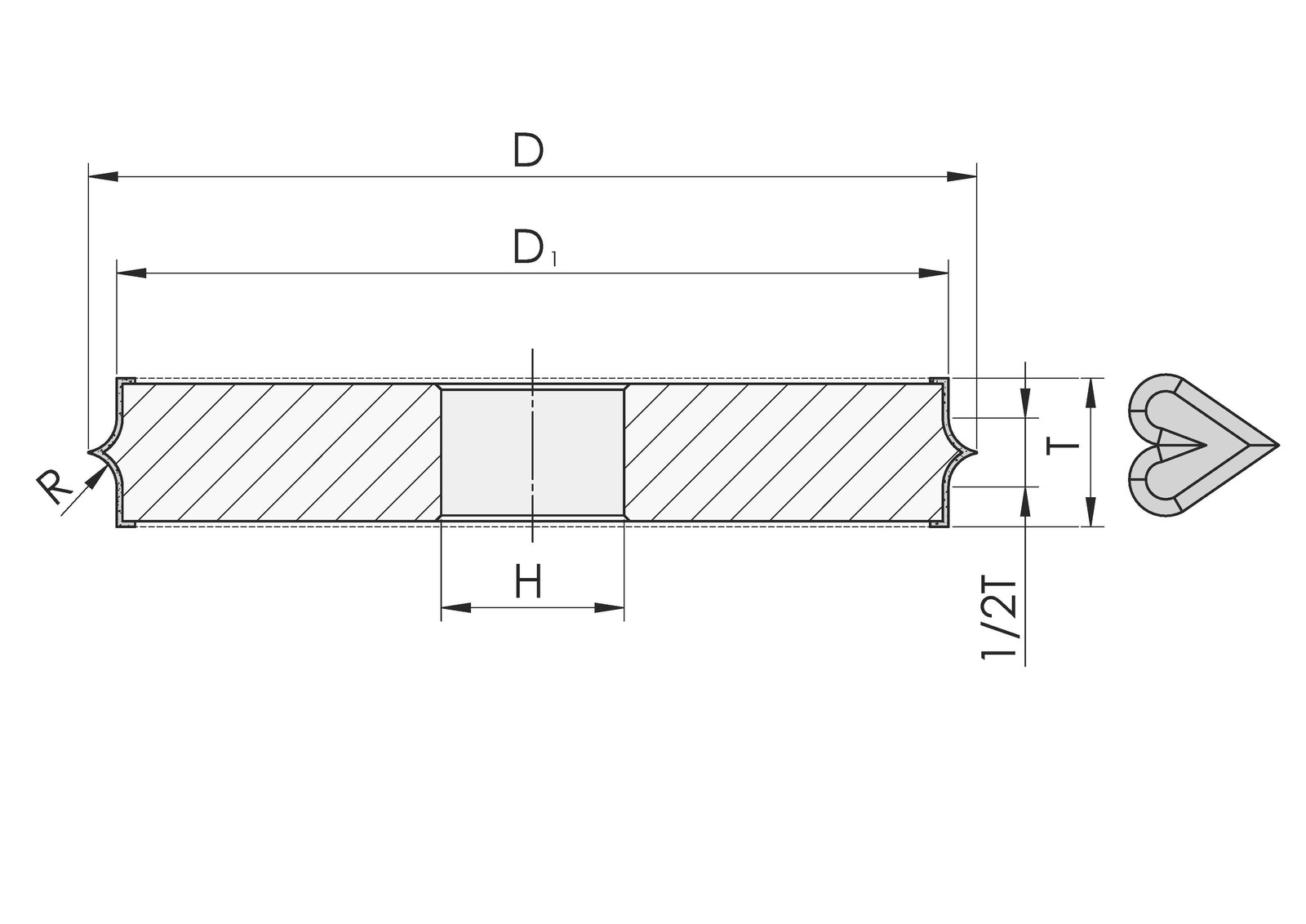

Dimensions

D R T D1 H
60 3 10 57,3 according to the order
60 3,5 11 57,3 according to the order
60 4 12 57,3 according to the order
60 4,5 13 57,2 according to the order
60 5 14 57,1 according to the order
60 5,5 15 57 according to the order
60 6 16 56,9 according to the order
60 6,5 17 56,8 according to the order
60 7 18 56,7 according to the order
60 7,5 19 56,6 according to the order
60 8 20 56,5 according to the order
60 8,5 21 56,4 according to the order
60 9 22 56,2 according to the order
60 9,5 23 56,1 according to the order
60 10 24 56 according to the order
60 10,5 25 55,9 according to the order
60 11 26 55,7 according to the order
60 11,5 27 55,6 according to the order
60 12 28 55,5 according to the order
60 12,5 29 55,4 according to the ordera
60 13 30 55,2 according to the order
60 13,5 31 55,1 according to the order
60 14 32 55 according to the order
60 14,5 33 54,8 according to the order
60 15 34 54,7 according to the order
60 16 36 54,5 according to the order
60 17 38 54,2 according to the order
60 18 40 53,9 according to the order
60 19 42 53,7 according to the order
60 20 44 53,4 according to the order

Order example

Wheel type D R T H Body Grain Binder Assortment
S-1218 60 x 3,5 x 11 x 10 KS D107 G S-1218 60 x 3,5 x 11 x 10 KS D107 G
S-1218 60 x 8,5 x 21 x 10 KS D126 G S-1218 60 x 8,5 x 21 x 10 KS D126 G

Application

The galvanic diamond grinding wheel type S-1218 is designed for shaping a heart profile.
