Type: 5A1

Application

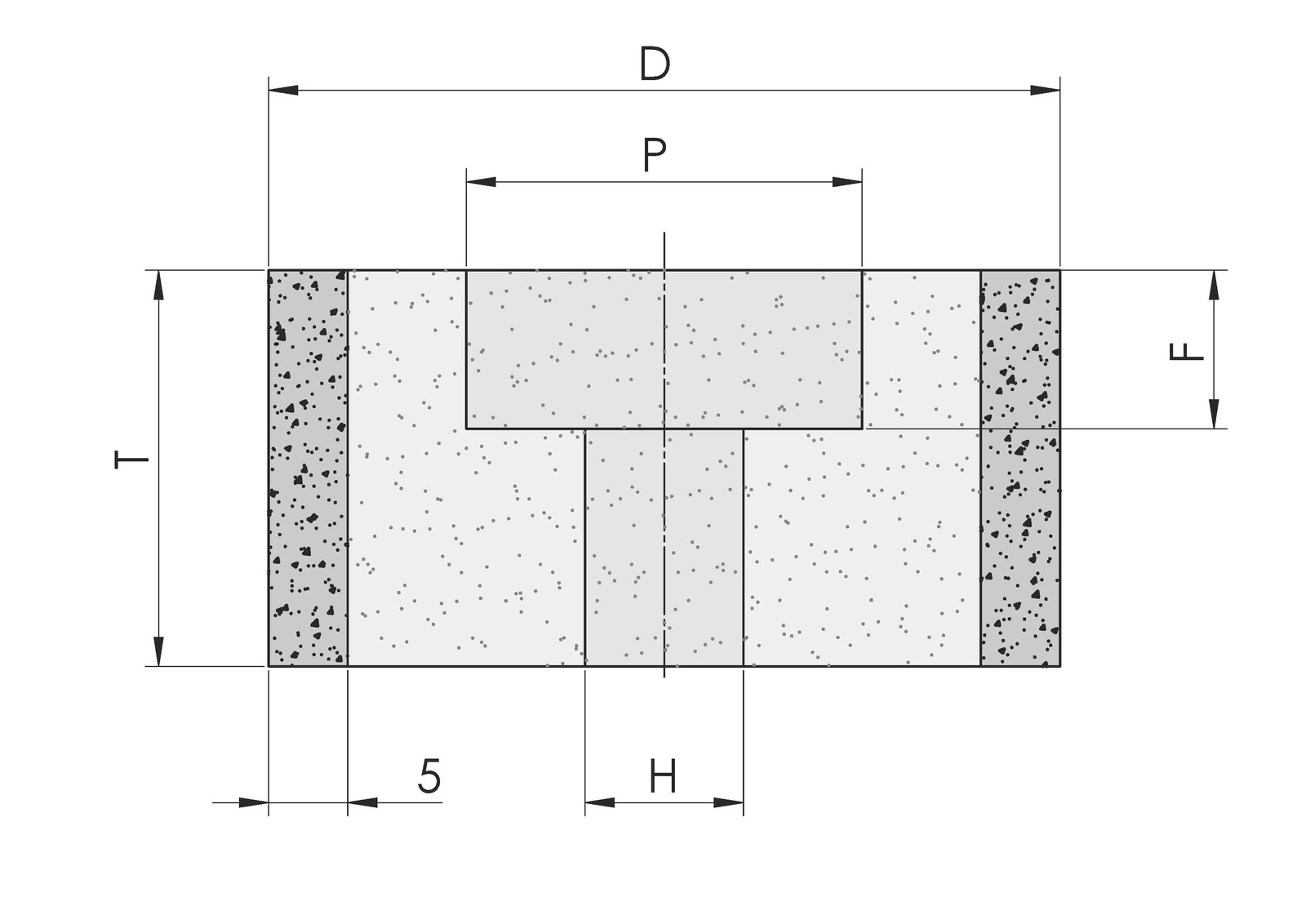

Dimensions

D		T		H		Pmax		Fmax
25	x	20	x	6 | 8	/	12	x	14
25	x	25	x	6 | 8	/	12	x	19
30	x	20	x	8 | 10 | 13	/	17	x	12
30	x	25	x	8 | 10	/	17	x	17
30	x	25	x	13	/	17	x	15
30	x	30	x	8 | 10	/	17	x	20
30	x	30	x	13	/	17	x	18
32	x	20	x	8 | 10 | 13	/	19	x	12
32	x	25	x	8 | 10	/	19	x	17
32	x	25	x	13	/	19	x	15
32	x	32	x	8 | 10	/	19	x	22
32	x	32	x	13	/	19	x	20
35	x	25	x	10 | 13	/	22	x	17
35	x	25	x	16	/	22	x	15
35	x	33	x	10 | 13	/	22	x	23
35	x	33	x	16	/	22	x	21
35	x	35	x	10 | 13	/	22	x	22
35	x	35	x	16	/	22	x	20
40	x	25	x	8 | 10	/	27	x	15
40	x	25	x	13 | 16	/	27	x	13
40	x	32	x	8 | 10	/	27	x	19
40	x	32	x	13 | 16	/	27	x	17
40	x	40	x	8 | 10	/	27	x	27
40	x	40	x	13 | 16	/	27	x	25
45	x	25	x	13	/	32	x	12
50	x	25	x	8 | 10	/	37	x	15
50	x	25	x	13 | 16	/	37	x	12
50	x	25	x	20	/	37	x	10
50	x	32	x	8 | 10	/	37	x	22
50	x	32		13 | 16	/	37	x	17
50	x	32	x	20	/	37	x	12
50	x	40	x	8 | 10	/	37	x	27
50	x	40	x	13 | 16	/	37	x	24
50	x	40	x	20	/	37	x	20
50	x	50	x	8 | 10	/	37	x	35
50	x	50	x	13 | 16	/	37	x	32
50	x	50	x	20	/	37	x	30
63	x	25	x	13 | 16	/	50	x	12
63	x	25	x	20	/	50	x	10
63	x	32	x	13 | 16	/	50	x	16
63	x	32	x	20	/	50	x	12
63	x	50	x	13 | 16	/	50	x	33
63	x	50	x	20	/	50	x	30
70	x	25	x	20	/	57	x	10
70	x	32	x	20	/	57	x	12
70	x	50	x	20	/	57	x	30
75	x	25	x	20	/	59	x	10
75	x	32	x	20	/	59	x	12
75	x	50	x	20	/	59	x	28
80	x	32	x	20	/	65	x	12
80	x	40	x	20	/	65	x	18
90	x	32	x	20	/	72	x	18
100	x	25	x	20 | 32	/	85	x	10
100	x	32	x	20 | 32	/	85	x	16
125	x	25	x	20 | 32	/	110	x	10
125	x	40	x	20 | 32	/	110	x	18
125	x	50	x	20 | 32	/	110	x	26
125	x	60	x	20 | 32	/	110	x	35
150	x	25	x	20 | 32	/	130	x	10
160	x	25	x	20 | 32	/	140	x	10
160	x	32	x	20 | 32	/	140	x	12
160	x	60	x	20 | 32	/	140	x	35

Średnice wybrań mają zastosowanie przy warstwie roboczej x=5 mm

Order example

Wheel type	D T H / P F	Body	Grain	Concentration	Mass parameters	Assortment
5A1	30 x 25 x8/15 x 12	KC	B107	V240	M V	5A1 30 x 25 x 8/15 x 12 KC B107 V240 MV
5A1	80 x 45 x 20/60 x 10	KC	B126	V240	T V	5A1 80 x 45 x 20/60 x 10 KC B126 V240 TV
