The arbor-mounted grinding wheel, Type 1A1W, is designed for internal grinding of rolling bearing rings, pilot holes, and high-precision cutting tools (end mills, reamers). This grinding wheel is also used for precision grinding of complex-shaped workpieces.

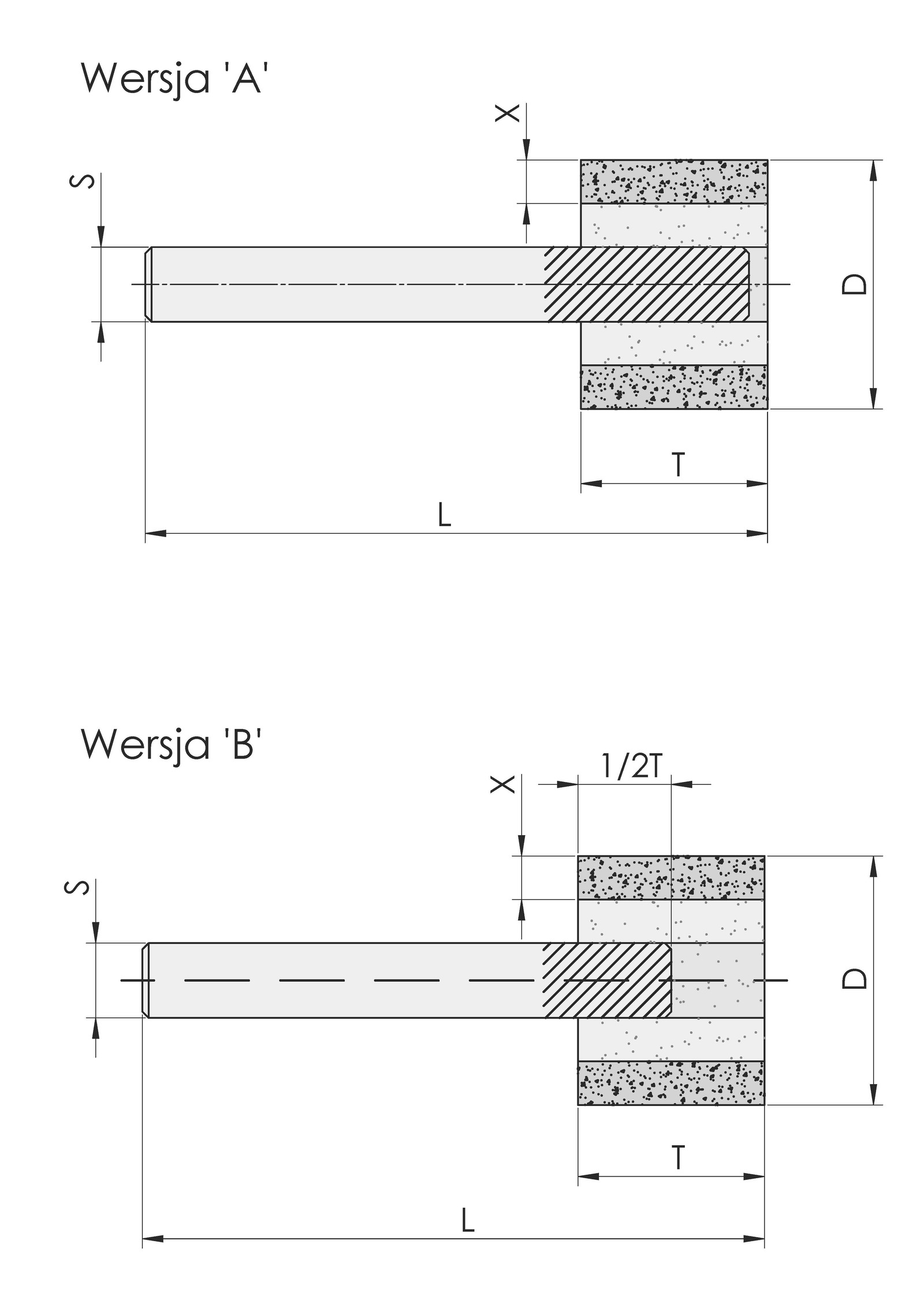

| D | T | X | S | L | Version |
| 25 | 20 | 25 | 5 | 8 | 10 | 50 | 60 | 80 | 100 | 120 | A | B |
| 28 | 20 | 25 | 5 | 8 | 10 | 50 | 60 | 80 | 100 | 120 | A | B |
| 30 | 20 | 25 | 30 | 5 | 8 | 10 | 60 | 80 | 100 | 120 | A | B |
| Wheel type | D T X S/L | Body | Grain | Concentration | Mass parameters | Assortment |
| 1A1W-A | 28x20x5x8/100 | KS | B107 | V240 | M V | 1A1W-A 28x20x5x8/100 KS B107 V240 MV |
| 1A1W-B | 30x30x5x10/40 | KS | B151 | V240 | T V | 1A1W-B 30x30x5x10/40 KS B151 V240 TV |
The arbor-mounted grinding wheel, Type 1A1W, is designed for internal grinding of rolling bearing rings, pilot holes, and high-precision cutting tools (end mills, reamers). This grinding wheel is also used for precision grinding of complex-shaped workpieces.
