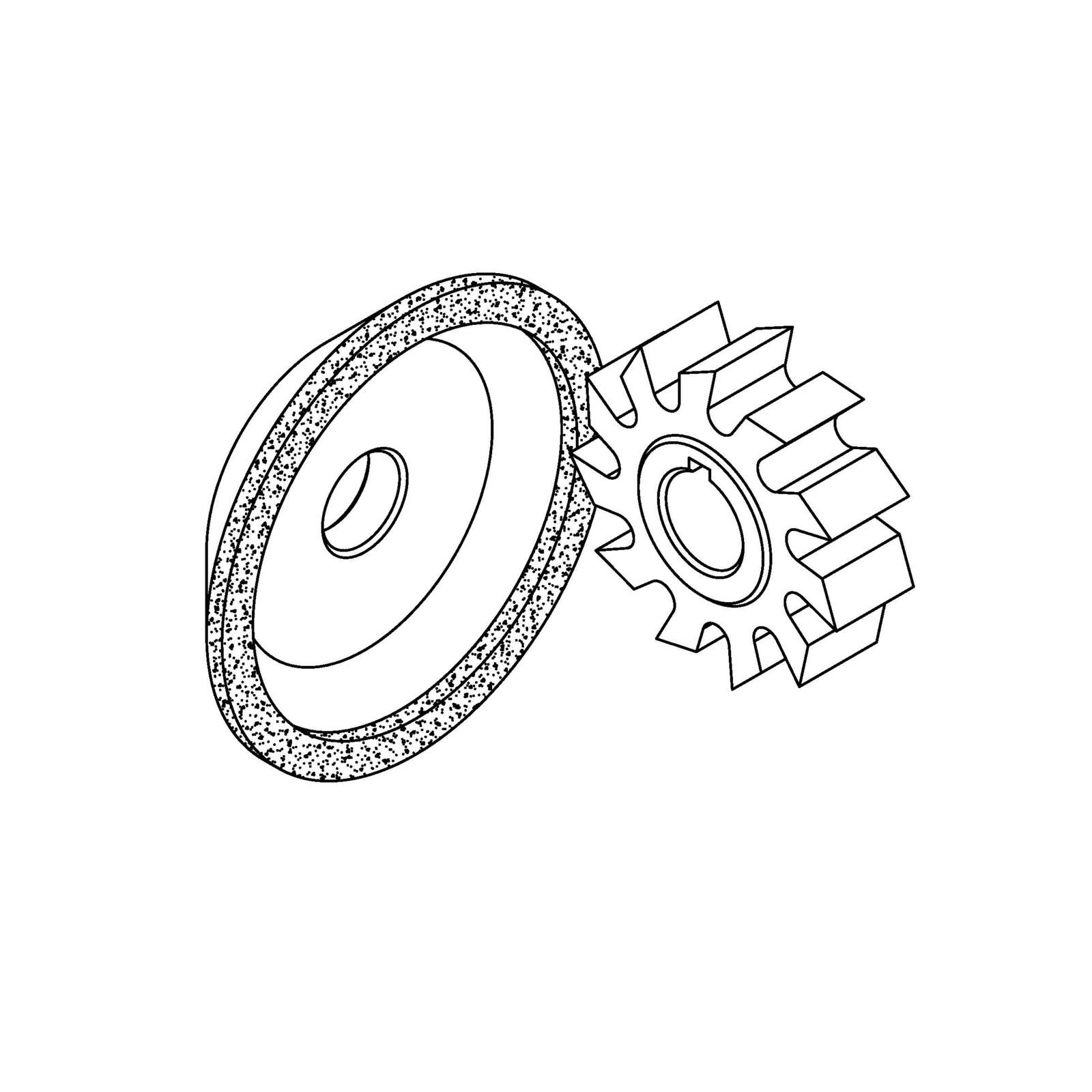

The 12A2/45° type grinding wheel is designed for grinding and sharpening cutting tools made of tool steel and high-speed steel. The “45°” designation may refer to the angle at which the grinding wheel is mounted or oriented during use, and this angle can be relevant for specific grinding operations. It is important for achieving the desired tool geometry and sharpness.

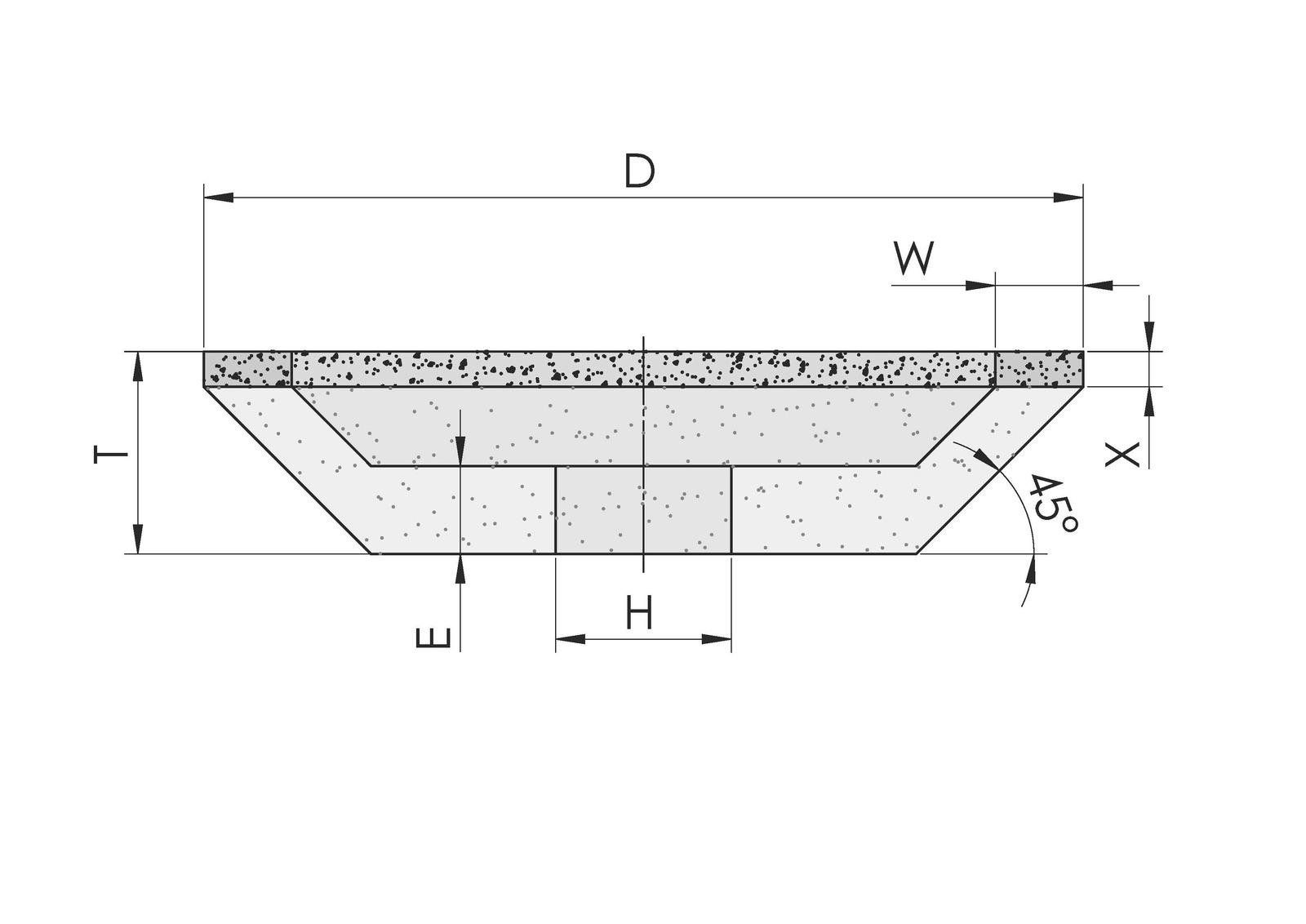

| D | W | X | T–X= | E | H |
| 80 | 5 | 10 | 5 | 20 | 10 | 20 |
| 100 | 5 | 10 | 5 | 23 | 12 | 20 |
| 125 | 5 | 10 | 5 | 23 | 12 | 20 | 32 |
| 150 | 5 | 10 | 5 | 10 | 23 | 15 | 20 | 32 |
| Wheel type | D W X H | Body | Grain | Concentration | Mass parameters | Assortment |
| 12A2/45° | 100x5x5x20 | KC | B107 | V240 | M V | 12A2/45° 100x5x5x20 KC B107 V240 MV |
| 12A2/45° | 150x10x5x20 | KC | B126 | V240 | T V | 12A2/45° 150x10x5x20 KC B126 V240 TV |
The 12A2/45° type grinding wheel is designed for grinding and sharpening cutting tools made of tool steel and high-speed steel. The “45°” designation may refer to the angle at which the grinding wheel is mounted or oriented during use, and this angle can be relevant for specific grinding operations. It is important for achieving the desired tool geometry and sharpness.
