Type: 4C9

Application

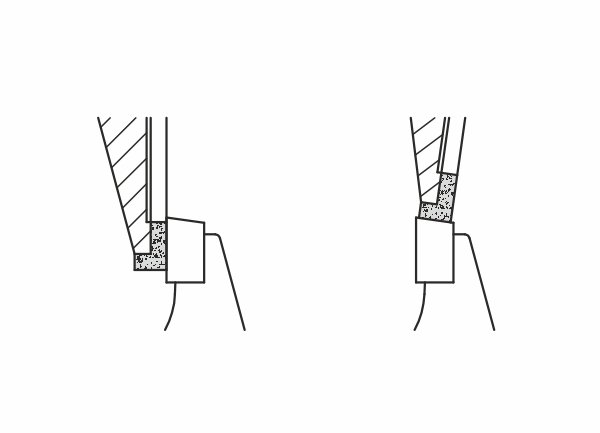

The abrasive stone of type 4C9 is intended for sharpening the cutting surfaces and teeth of carbide-tipped and steel circular saw blades.

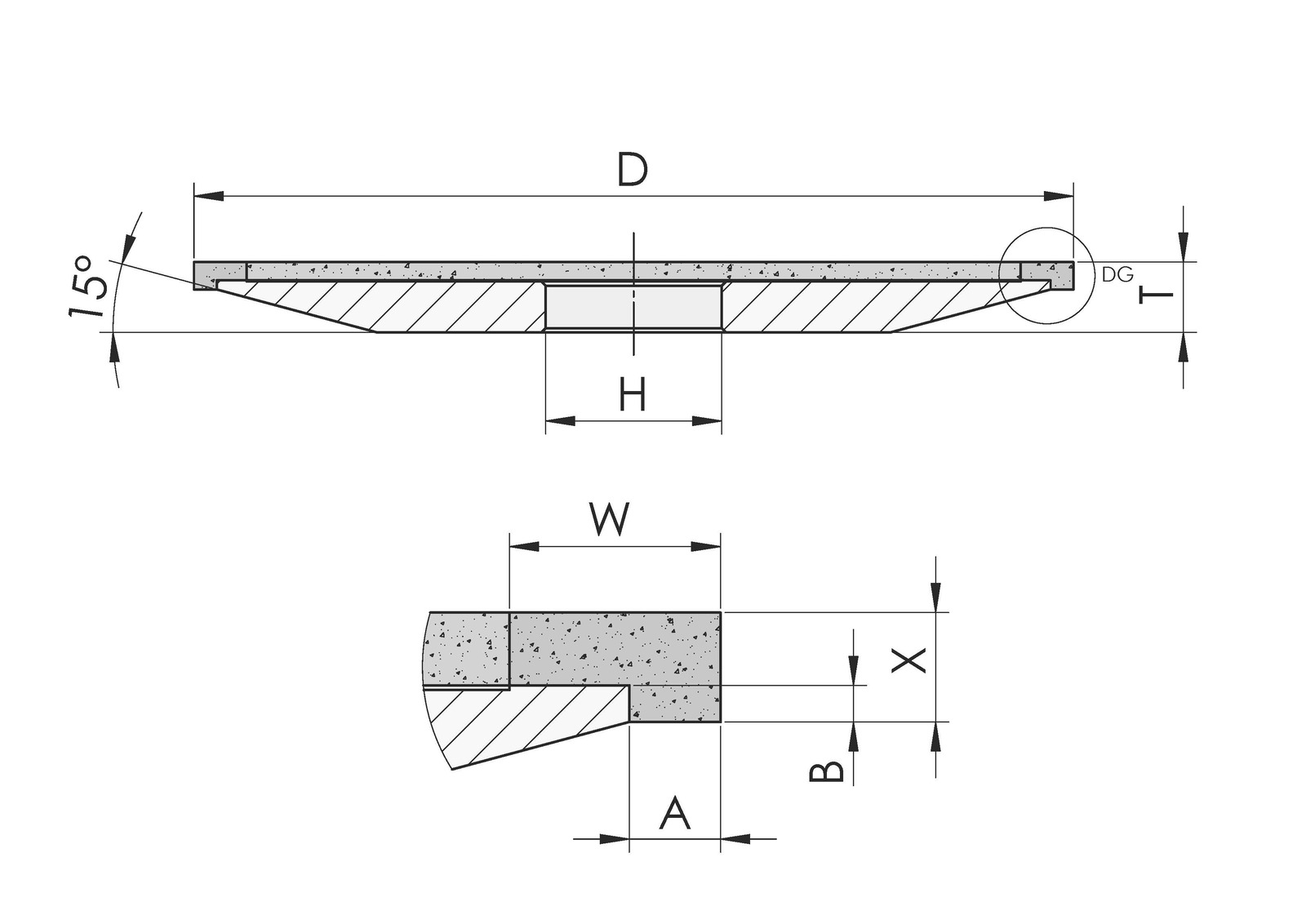

Dimensions

D	W	A	X	B	T	H
80	6 \| 10	2	4	2	8	≤ 32
100	6 \| 10	2	4	2	8	according to the order
125	6 \| 10	2	4	2	9	according to the order
150	6 \| 10	2	4	2	11	according to the order
175	6 \| 10	2	4	2	12	according to the order
200	6 \| 10	2	4	2	13	according to the order

Order example

Wheel type	D W A X B H	Body	Grain	Concentration	Operating conditions	Assortment
4C9	80x6x2x6x2x20	KA	D107	K75	M B s	4C9 80x6x2x6x2x20 KA D107 K75 MBs
4C9	125x10x2x6x2x32	KA	B91	V180	T B m	4C9 125x10x2x6x2x32 KA B91 V180 TBm

Application

The abrasive stone of type 4C9 is intended for sharpening the cutting surfaces and teeth of carbide-tipped and steel circular saw blades.
