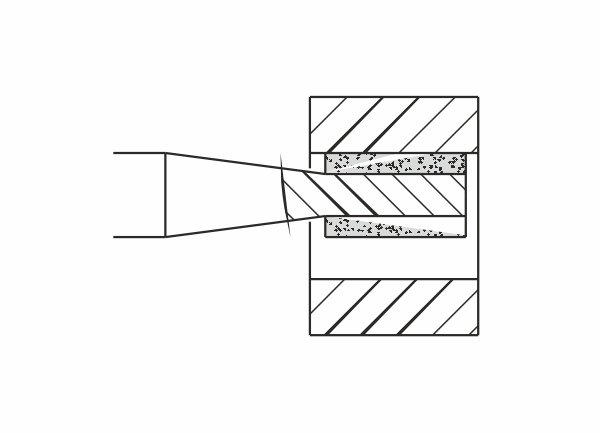

The Type 1A1W arbor-mounted grinding wheel is designed for internal grinding of rolling bearing rings, pilot holes, and high-precision cutting tools (end mills, reamers). This grinding wheel is also used for precision grinding of complex-shaped workpieces.
| D | T | X | S | d | Version | L |
| 3 | 5 | 10 | 0,65 | 3 | 1,7 | I | according to the order |
| 4 | 5 | 10 | 1 | 3 | 2 | I | according to the order |
| 5 | 5 | 10 | 1,5 | 3 | 2 | I | according to the order |
| 6 | 5 | 10 | 1,5 | 3 | – | II | according to the order |
| 6 | 5 | 10 | 1,5 | 6 | 3 | I | according to the order |
| 7 | 5 | 10 | 1,5 | 6 | 4 | I | according to the order |
| 8 | 5 | 10 | 2 | 6 | 4 | I | according to the order |
| 9 | 5 | 10 | 2 | 6 | 5 | I | according to the order |
| 10 | 5 | 10 | 15 | 2 | 6 | – | II | according to the order |
| 11 | 5 | 10 | 15 | 2 | 6 | – | III | according to the order |
| 12 | 5 | 10 | 15 | 2 | 6 | – | III | according to the order |
| 13 | 5 | 10 | 15 | 2 | 6 | – | III | according to the order |
| 14 | 5 | 10 | 15 | 2 | 6 | – | III | according to the order |
| 15 | 5 | 10 | 15 | 2 | 6 | – | III | according to the order |
| 16 | 5 | 10 | 15 | 2 | 6 | – | III | according to the order |
| 20 | 5 | 10 | 15 | 2 | 6 | – | III | according to the order |
| Wheel type | D T X S/L | Body | Grain | Concentration | Operating conditions | Assortment |
| 1A1W | 14x15x2x6/50 | KS | D107 | K75 | M B s | 1A1W 14x15x2x6/50 KS D107 K75 MBs |
| 1A1W | 16x10x2x6/80 | KS | B91 | V180 | T B m | 1A1W 16x10x2x6/80 KS B91 V180 TBm |
The Type 1A1W arbor-mounted grinding wheel is designed for internal grinding of rolling bearing rings, pilot holes, and high-precision cutting tools (end mills, reamers). This grinding wheel is also used for precision grinding of complex-shaped workpieces.
See resin wheel selection guide
